Overview
Overview

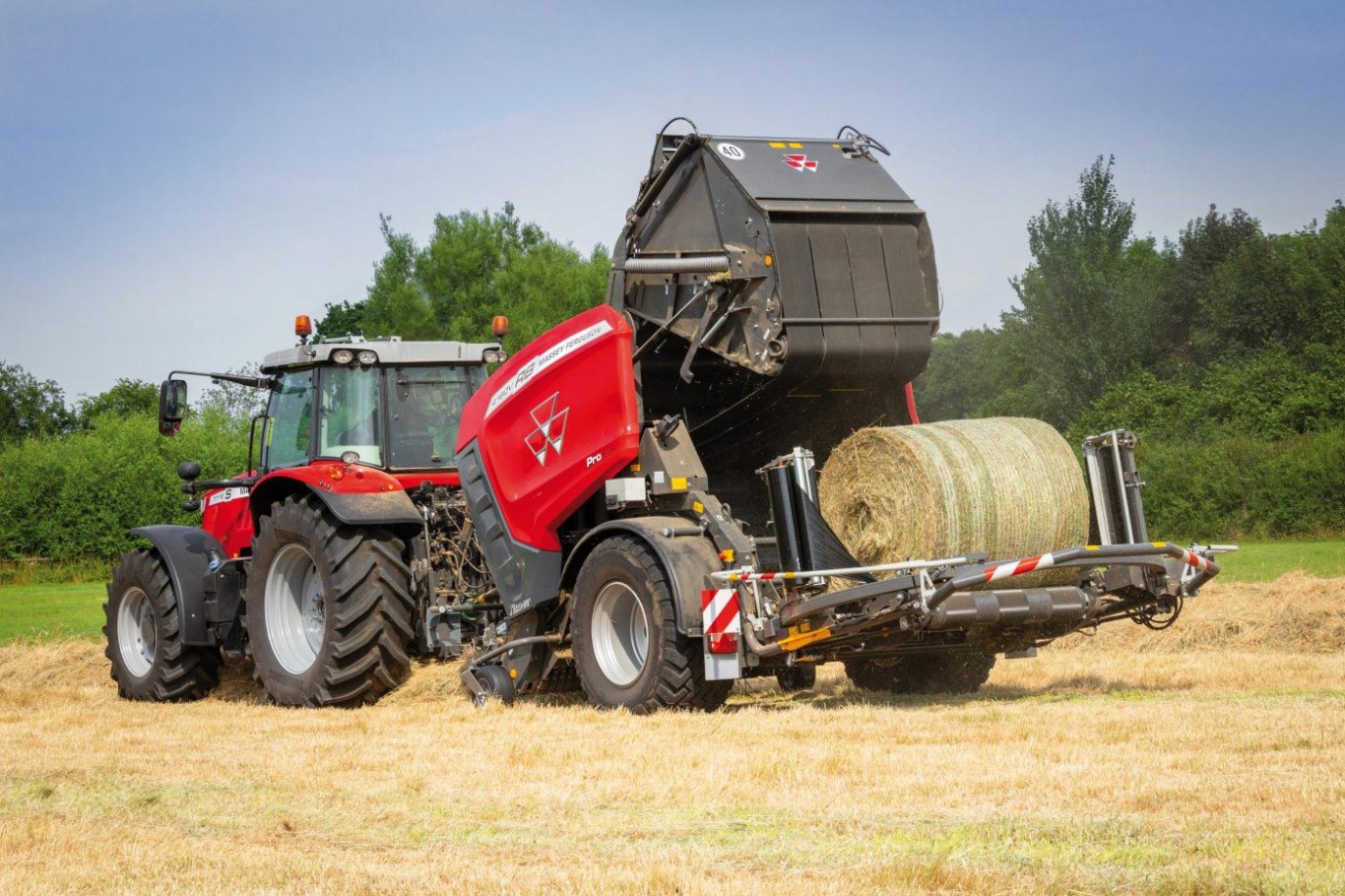

Variable Chamber Baler Wrapper Combination - ProTec

Massey Ferguson RB 4160V Protec (Protection baler & Professional Technology) combines all benefits of our variable chamber baler with the addition of an integrated wrapper device for fast and effective baling and wrapping on the go.
Specifications
Model
MF RB V PROTEC
Year
2022
Sale Type
New
Manufacturer
Massey Ferguson
Quantity
1
Manufacturer Qty
0
key benefits

High Performance wrappingMassey Ferguson RB V PROTEC Series Round Balers

The new combination unit has a lower crop elevation angle, reducing the overall baler height. This feature improves stability, allowing safer and faster hillside operation. It also reduces back pressure in the feeding area, streamlining crop flow and minimising the risk of blockages.

Baler Wrapper CombinationMassey Ferguson RB V PROTEC Series Round Balers

Our new MF RB 4160V Protec baler combines all benefits of our variable chamber baler with the addition of an integrated, specially designed wrapper device for fast and effective baling and wrapping on the go.

Camless DesignMassey Ferguson RB V PROTEC Series Round Balers

The baler features a 2.25m pick-up with a camless design offering higher working speed, reduced maintenance and reduced noise levels.

XtraCutMassey Ferguson RB V PROTEC Series Round Balers

The Xtracut cutter is offered with 17 knives, providing optimum cutting performance in all conditions.

Constant Pressure System (CPS)Massey Ferguson RB V PROTEC Series Round Balers

The Constant Pressure System (CPS) combines spring and hydraulic actions and ensures constant pressure during bale formation.
performance
THE HIGHEST BALE COMPACTION

THE HIGHEST BALE COMPACTION

The constant pressure system ensures an equally dense bale throughout, and four continuous belts provide maximum traction while the bale forms, creating the chamber.
efficiency
Hydroflexcontrol

Hydroflexcontrol

To maximise efficiency in the field and minimise downtime from crop blockages, the MF Round balers are fitted with the unique Hydroflexcontrol protection system which works in two stages:
Hydroflexcontrol - Stage 1

Hydroflexcontrol - Stage 1

The first stage of Hydroflexcontrol allows movement of the front part of the feed chamber floor and will automatically prevent up to 80% of potential blockages and will keep you going without unnecessary downtime.
Hydroflexcontrol - Stage 2

Hydroflexcontrol - Stage 2

Should a major blockage occur, stage two of hydroflexcontrol is activated by the operator, and is cleared by lowering the rear of the feed table floor hydraulically from the cab, allowing for material to easily pass through, therefore minimizing downtime.
ProTec Control Panel

ProTec Control Panel

An external control panel on the back of the baler allows control of the tailgate, wrapping ring and table and the film clamps for easy film roll change, maintenance or cleaning.
ProTec Transport Mode

ProTec Transport Mode

In transport mode the wrapper ring is folded forwards, reducing the overall machine length to just 5.9m for safer transport and improved manoeuvrability.
ProTec Slope Transfer Mode

ProTec Slope Transfer Mode

For added safety on hillside conditions this mode allows for the transfer arm to move more slowly while the wrapper ring is lifted higher to receive the bale. This ensures that the bale will be securely delivered to the wrapper even in sloping terrain.
ProTec Guiding Plates

ProTec Guiding Plates

In addition to the transfer arm, the new design features two active guiding plates on both sides of the baler clearly directing the bale to the centre of the wrapper plate allowing for a faster and more secure transfer cycle.
ProTec Combination Unit

ProTec Combination Unit

The unit has a lower crop elevation angle, reducing the overall baler height. This improves stability, allowing safer hillside operation. It also reduces back pressure in the feeding area, streamlining crop flow and minimising the risk of blockages.
ELS MAKES IT EVEN EASIER

ELS MAKES IT EVEN EASIER

The Easy Load System, or ELS, allows easier loading of the net roll. After loading, the new net roll is simply tipped backward, then lifted and locked into position. It makes the process simple, saving you time and effort.
productivity
Pick-Up Position

Pick-Up Position

On the MF round balers, the pick-up is positioned very closely to the rotor, therefore improving crop flow and reducing the risk of blockage.
ProTec Wrapper Table

ProTec Wrapper Table

The hydraulically driven wrapper table consists of two rollers and three endless belts mounted on a welded frame for extra durability.
ProTec Wrapper Table Sensor

ProTec Wrapper Table Sensor

A sensor underneath the middle belt will allow for wrapping to begin only after the bale is fully positioned on the table, while four large side support rollers keep the bale centred while wrapping.
ProTec Film Roll Holders

ProTec Film Roll Holders

Twelve film roll holders are conveniently located at a comfortable height on both sides of the baler and with two additional rolls installed on the wrapper, increase uptime in the field.
ProTec Wrapping Ring

ProTec Wrapping Ring

The wrapping ring is driven by a set of two rubber rollers, ensuring plenty of gripping surface, eliminating slippage and reducing noise levels.
MORE TINE BARS

MORE TINE BARS

Due to the additional space created through the absence of a cam track, five tine bars are now fitted to the pickup. With the tines spaced just 2.5 inches apart, you get an even better and cleaner crop intake.
Optional Bale Tipper

Optional Bale Tipper

An optional bale tipper puts bales on their ends, preventing them from rolling away and making for easier loading on the trailer. The operator can also choose between automatic and manual unloading modes.

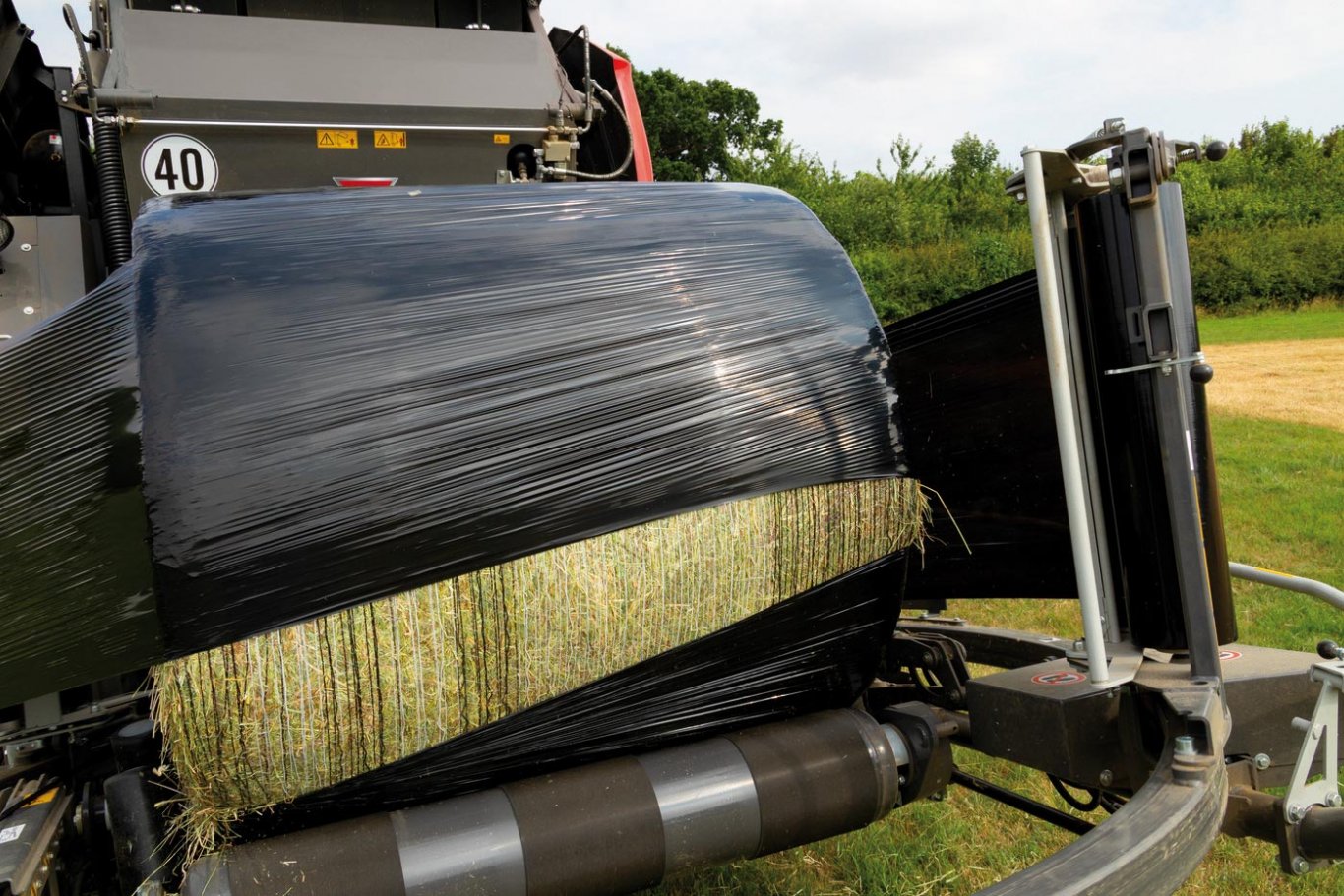

ProTec Bale Wrapping

ProTec Bale Wrapping

Once the bale is transferred to the centre of the wrapper table, a hydraulically driven wrapper ring begins its rotation even before the tailgate is fully closed, completing the cycle well before the next bale is formed.
ProTec Tires

ProTec Tires

Massey Ferguson Protec range is equipped with large low-pressure tires for reducing ground compaction. They permit greater stability and manoeuvrability on headlands without damaging turf also during very wet conditions.
ProTec Bale Discharge

ProTec Bale Discharge

To ensure gentle bale unloading, the wrapping table is lowered, thus minimising the bale’s rolling speed, preventing film damage and maintaining the ideal bale shape.
Choice of Pick-Up

Choice of Pick-Up

The baler features a choice of 2.25m or 2.40m pick-up with a camless design offering higher working speed, reduced maintenance and reduced noise levels.
VARIONET WRAPPING

VARIONET WRAPPING

The Varionet system provides ‘edge to edge’ or ‘over the edge’ wrapping, for perfect bale coverage every time. This means your bales not only look great, but they’re also completely protected against bad weather and crop losses.
farm management
E-LINK PRO

E-LINK PRO

The E-link Pro touch-screen monitor lets you track bale formation, control cutter engagement and select knife group from inside the cab. In addition, the baler’s ISOBUS design allows the use of any compatible tractor monitor for baler monitoring/control.
available models

Model

Chamber diameter (m)

Chamber Width (m)

Pick-Up Width (m)

Approximate weight (kg)
MF RB 4160V PROTEC 0.9 - 1.6 1.23 2.25 / 2.4 6,550
