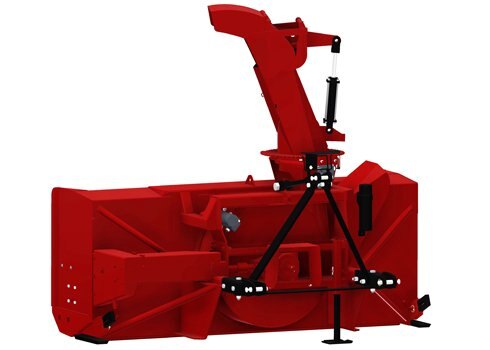

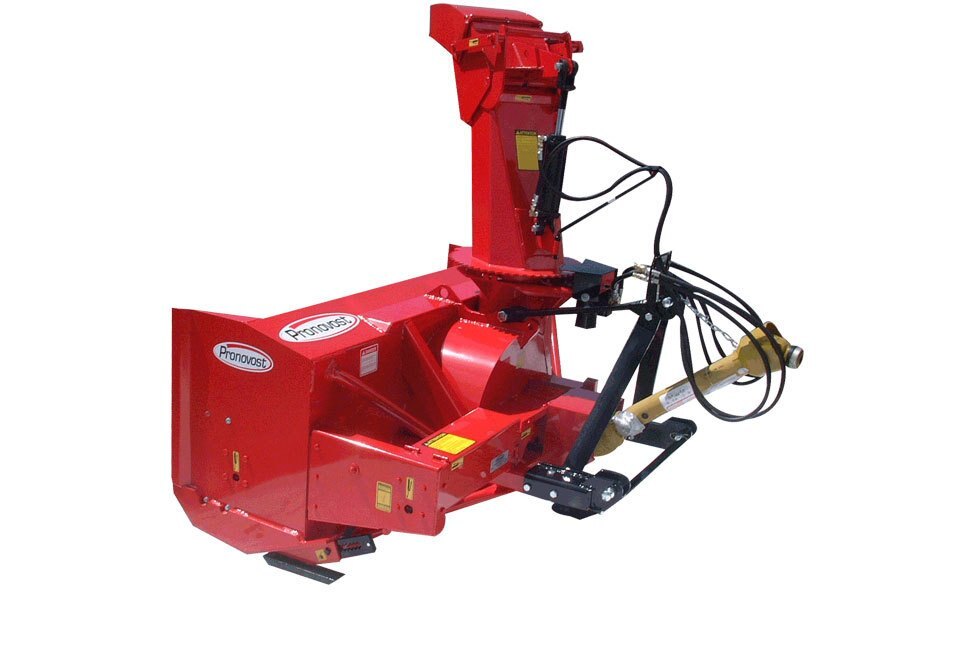

Pronovost Group II Heavy Duty Snow Blowers
-
ID # 27075671
- Back ID:27075671
- Book a Demo
- Get Directions
Overview
Overview
Specifications
features
options
FULL FLIGHT SPIKED MAIN AUGER
additional information
available models
Sales People
Contact Information
Location
To win the battle against snow, the pros use PRONOVOST snowblowers, the most versatile line up of models in the industry. Three groups totaling over 40 models, each adapted to perform in all types of heavy duty conditions. Specifications may be adapted under certain conditions.
Model
Pronovost
Year
2022
Sale Type
New
Manufacturer
Pronovost
Quantity
1
Manufacturer Qty
0
Color
Included : Red Pronovost Opt. : Choice of 5 colors
Weight
Reg. : 2095 lbs / 950 kg TRC : 2405 lbs / 1091 kg
Rotor RPM
540 RPM
Depth Of Drum
12" / 305 mm
Working Width
98" / 2489 mm
Cutting Height
40" / 1016 mm
Hitch Category
2 - 34 1/2" / 876 mm c/c
Number Of Augers
1
Impeller Diameter
34" / 864 mm
Main Auger Diameter
23" / 584 mm
Number Of Shear Bolts
1 for impeller + 1 for auger
Impeller Shaft Diameter
2" / 51 mm
Drive Chain - Main Auger
80
Height Of Impeller Center
21" / 533 mm
Number Of Impeller Blades
6
HP Recommended (min. - Max.)
90 to 125 HP PTO
Bearing / Ductile Iron Housing
1 1/2" / 38 mm
Drive Shaft Included (optional)
T80 (V80, T90 and V90)
Required RPM For The Tractor PTO
540 RPM
Weight Including Chute (TRC Model)
2405 lbs / 1091 kg
Impeller Housing Contour : High Quality Steel
Inclus
FEATURES
Bringing together the most popular styles among snow removal professionals, snowblowers in this series combine the robustness and manoeuvrability that forged the Pronovost reputation for decades.
- Semi-industrial chute PSIG-7486, with greasable hinges and removable access panel.
- Hydraulic cylinder and hose support for chute deflector adjustment.
- Hydraulic motor chute rotation kit (motor included).
- Chute rotation on antifriction ring.
- Balanced auger.
- Automatic double chain binder.
- Quick adjust skid shoes.
- Adjustable 3 point hitch.
- Robust reinforced sides.
- Lighter balanced rotor which is stronger and more efficient.
- Roller bearing encased in ductile cast iron.
- Removable scraper blade set on a 6◦ angle and reversible.
- Bolted rotating drum (thereby removable) mounted on UHMW bearing (TRC).
- Hydraulic motor drum rotation.
- Easy maintenance.
- May be color matched to your tractor.
OPTIONS
CHOICE OF CHUTE
|
PSIG-7486 |
PCG-7486 |
PRP-7486-2 |
PRP-7486 |
PCT-7486-HDB |
| Semi-industrial chute with greasable hinges and access panel (removable) | PSIG-7486 |
|---|---|
| Quick attach industrial chute with greasable hinges and access panel (removable) | PCG-7486 |
|
PRP-7486-2 |
|
PRP-7486 |
| Hydraulic telescopic industrial chute with greasable hinges and access panel, including extensions cylinders and hose support + hose support for deflector cylinder. Includes replacement of chute base for telescopic chute. | PCT-7486-HDB |
|
PKL-IND-7486 |
CHOICE OF ADJUSTMENT FOR CHUTE DEFLECTOR
| Hydraulic cylinder (included) | 25TR08 |
|---|---|
|
TSB-74104 |
| Manual telescopic tube | T-74104 |
HYDRAULIC MOTOR FOR CHUTE ROTATION
| Hydraulic motor (included) | MLH-315-R |
|---|
HOSE KITS
|
PKB-GR3 |
PKB-GR3TRC |
| Hose kit for basic functions. Includes hydraulic hoses connecting the tractor oil outlets to the deflector adjustment cylinder and the chute rotation motor. * Installation not included. | PKB-GR3 |
|---|---|
| Kit for TRC models, also includes hoses for drum rotation motor. * Installation not included. | PKB-GR3TRC |
| Kit for models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. | PKB-GR3-T |
| Kit for TRC models with telescopic chute PCT-7486-HDB, also includes hoses for chute lifting cylinders. * Installation not included. | PKB-GR3TRC-T |
LATERAL BLADES
|
|
| Lateral blades, high quality steel 3/8" x 4" x 61 1/2" | CL-920 |
|---|
SCRAPER BLADE
|
SIT1-98 |
T1-98 |
TV-98 |
SST-98 |
|---|
| Semi-industrial scraper blade, carbon steel 450, reversible 1/2" x 4" not sharpened | SIT1-98 |
|---|---|
| Industrial scraper blade, carbon steel 450, not reversible 1/2" x 6" sharpened | T1-98 |
| TV-98 | |
| Stainless Steel scraper blade, reversible, 1/2" x 4" not sharpened | SST-98 |
SKID SHOES
|
PHD-92104 |
PSHD-92104 |
PST-92104 |
|---|
| Industrial skid shoes with Hardox 450 soles | PHD-92104 |
|---|---|
| Skid shoes with ROCKTEC soles | PSHD-92104 |
| Skid shoes with stainless steel soles | PST-92104 |

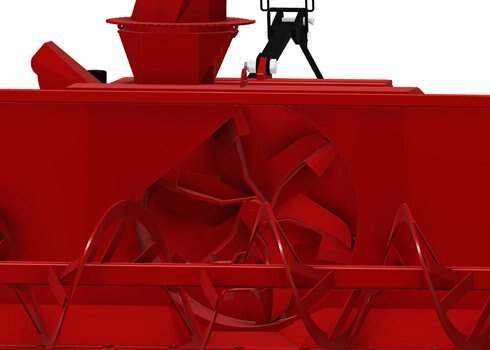

FULL FLIGHT SPIKED MAIN AUGER
|
VIP-920-98 |
|---|
| Full flight serrated main auger | VIP-920-98 |
|---|
SPEED REDUCER
|
PRH-30M-2 |
PRH-25M-2 |
|---|
| Speed reducer 1000/555 RPM - 220 HP at 1000 RPM - 3 gears - shafts 7 1/16" c/c | PRH-30M-2 |
|---|---|
| Drop box 1000/540 RPM. Two choices of input shafts : Reducer inverter 225 HP at 1000 RPM 2/3 gears - shafts 6 3/4" c/c or reducer only 175 HP at 1000 RPM 3/3 gears - shafts 8" c/c | PRH-25M-2 |
CHOICE OF POWER TAKE-OFF (PTO)
| T80 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9225 |
|---|---|
| T80 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569 |
| T80 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9569-1 |
| V80 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9225-V |
| V80 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9569-V |
| T90 PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9475 |
| T90 PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9475-1 |
| T90 PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 9475-2 |
| V90 Multilobe PTO 1 3/8"-6 & 1 3/4"-20 (540 RPM) | 9598 |
| V90 Multilobe PTO 1 3/8"-21 & 1 3/4"-20 (1000 RPM) | 9599 |
| V90 Multilobe PTO 1 3/4"-20 & 1 3/4"-20 (1000 RPM) | 960 |
HYDRAULIC MOTOR FOR ROTARY DRUM (TRC MODELS ONLY)
| Hydraulic motor (included on TRC model) | MLH-315-R |
|---|
IMPELLER HOUSING
| Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel | TBHD-3412 |
|---|---|
| Impeller housing contour made from Hardox 450 steel in lieu of regular grade steel (for TRC model) | TBHD-3412TRC |
RUBBER DEFLECTOR FLAP
| Rubber deflector flap located from the top of the frame to the auger. Reduces projections. | TL-9298 |
|---|
CHOICE OF COLORS
Red PRONOVOST |
|
|---|---|
Blue |
PG1-02 |
Orange |
PG1-04 |
Yellow INDUSTRIAL |
PG1-06 |
Green |
PG1-07 |
Black |
PG2-10 |
Additional_Information
|
HYDRAULIC DRIVEN It is possible to use this snowblower with hydraulic drive. The hydraulic oil flow at a specific pressure will guide you in to the choice of the snowblower. Contact your Pronovost dealer to obtain a quote for your specific requirements.
|
HYDRAULIC WHEELS
|
Available_Models
| Models | Working width | HP recommended | |
|---|---|---|---|
| P-800 | 80" / 2032 mm | 50 to 70 HP PTO | |
| P-860 / P-860TRC | 86" / 2184 mm | 50 to 80 HP PTO | |
| P-862 / P-862TRC | 86" / 2184 mm | 50 to 80 HP PTO | |
| P-860-92 / P-860TRC-92 | 92" / 2337 mm | 50 to 80 HP PTO | |
| P-920 / P-920TRC | 92" / 2337 mm | 75 to 95 HP PTO | |
| P-920-98 / P-920TRC-98 | 98" / 2489 mm | 75 to 95 HP PTO | |
| P-922 / P-922TRC | 92" / 2337 mm | 90 to 125 HP PTO | |
| P-922-98 / P-922TRC-98 | 98" / 2489 mm | 90 to 125 HP PTO | |
| P-98134 / P-98134TRC | 98" / 2489 mm | 90 to 125 HP PTO |
Documents
-
Pronovost_Snow Removal Professionals.pdf
