ID # 34799915

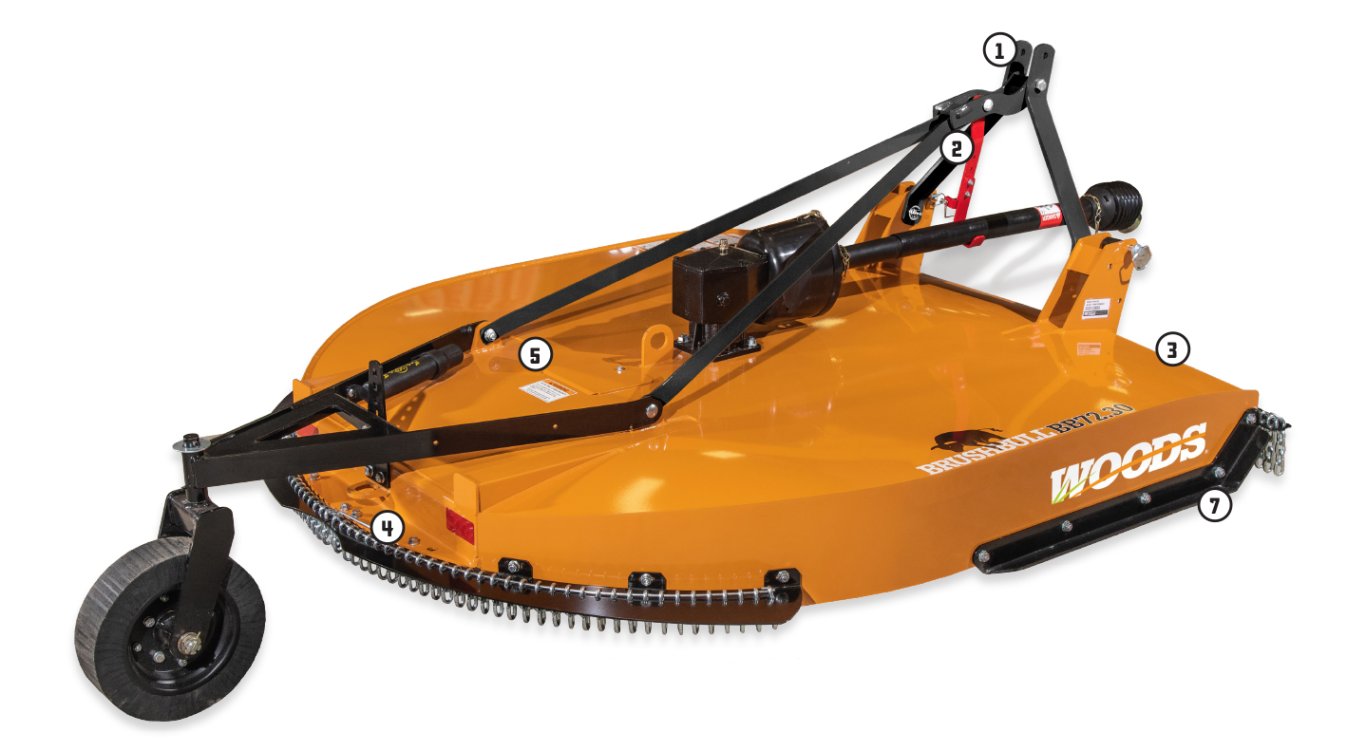

Woods BrushBull™ Cutters BB84.50
Videos
Overview
Greater Durability
Woods Exclusive Z-shaped, high-strength steel bumper is twice as thick as competitive models for backing over tough brush. |
Easy Maintenance
EZ-Change™ Blade System allows blade change in five steps with a 3/4″ wrench. No impact gun or torch required. |
Easy Connection
Quick-Hitch Ready from the factory. No additional hardware is needed to use your quick hitch. |
Unmatched Gearbox PROTECTION
10-year warranty including parts, labor, and seals. |
Specifications
Category Name
Agriculture
Hitch
CAT 2 / CAT 3 clevis
Options
Rubber belting/steel band or chain shielding; check chains, dual tailwheel: round stump jumper
Product Tier
Professional
Blade Carrier
Diamond stump jumper
Gearbox Warranty
10 year limited
Deck Construction
Smooth top, sloped
Structure Warranty
2 years
Deck Thickness (in)
.135 (10 ga)
Transport Width (in)
91.3
Blade Tip Speed (fpm)
16,000
Tractor PTO Speed (rpm)
540
Output Shaft Diameter (in)
2
Frame And Deck Support (in)
3 x 3 Tube
Adjustable Cutting Height (in)
2 to 12
Cutting Capacity Diameter (in)
3
Weight W/ Chain Shielding (lbs)
1,336
Side Frame Depth / Thickness (in)
12.7 / 0.25
additional features
Additional Features
|
- Quick-Hitch Ready from the factory. No additional hardware is needed to use your quick hitch.
- Adjustable Driveline Holder holds the driveline as you prepare to connect or disconnect the cutter.
- Tapered Front gives you more room between the tractor tire and cutter when connecting and disconnecting to the tractor.
- Woods Exclusive Z-shaped, high-strength steel bumper is twice as thick as competitive models for backing over tough brush.
- Large Blade Access Window for quick and easy blade maintenance from the top of the deck.
- Deep Cutting Deck works together with high-lift blades and a unique rear baffling design for better cut quality.
- Skid Shoes protect the deck and are easy to change. Adjust the height on heavy-duty models.
|
|
- A Heavy-Duty Crossbar and ¼” steel stump jumper to protect the undercarriage in extreme conditions.

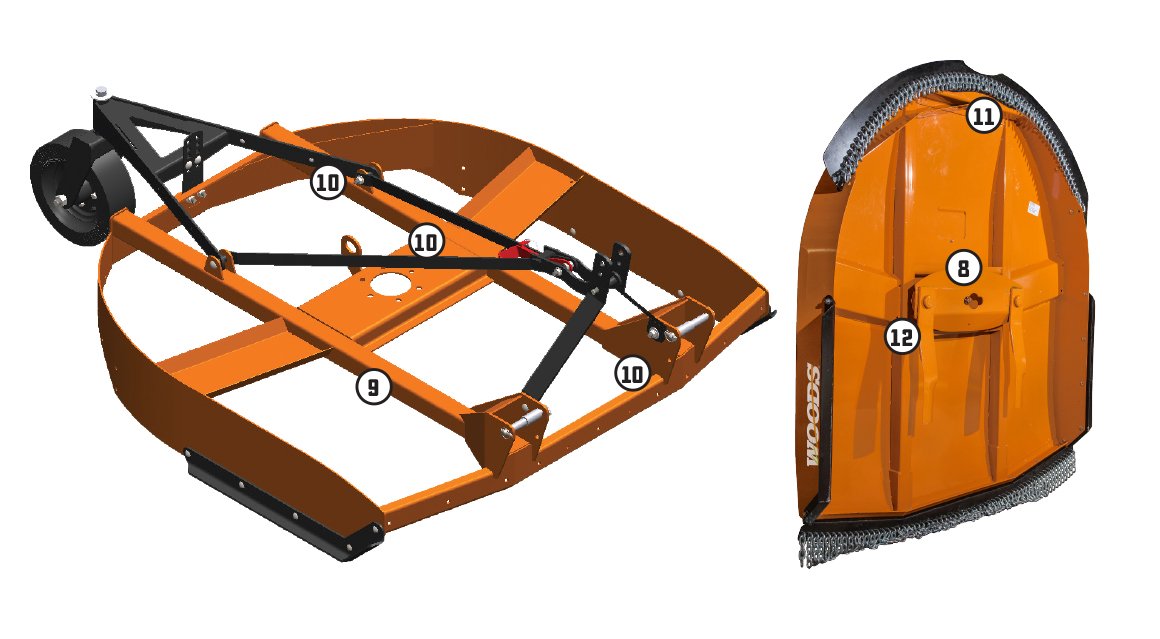

- A Full Frame Design with full-length, 3 x 3″ tubes and channels for greater strength and durability.
- Stress Points Tied To The 3 X 3″ Tubes (Not The Deck Plate) for added stability.
- Rear Baffle, Standard On All Models, concentrates the airflow and ensures cut material is distributed evenly.
- Large 1/2-Inch By 4-Inch Blades And Extra Deep Deck precisely cut large amounts of material.
|
